Project Layout

Maven Central bindex

Introduction

Project Layout is a Java utility library for describing, detecting, and working with conventional project directory layouts in a consistent way. It gives build tooling, scanners, generators, validation utilities, and plugins a shared model for locating well-known folders such as production sources, test sources, resources, and documentation directories.

Instead of duplicating path conventions throughout each tool, Project Layout centralizes these rules behind reusable layout implementations. This improves maintainability, reduces configuration drift, and makes project-structure discovery easier to adapt across different technology stacks and repository styles.

Overview

Project Layout provides abstractions and concrete layout strategies for common project ecosystems. It includes support for Maven, Gradle, JavaScript, Python, and default fallback project structures, along with utilities for reading project metadata and coordinating layout selection from a project root.

The library is especially useful for tools that must operate over heterogeneous repositories or Maven multi-module builds. By resolving important directories through a common API, downstream tools can focus on analysis, generation, documentation, validation, or indexing without hard-coding ecosystem-specific folder rules.

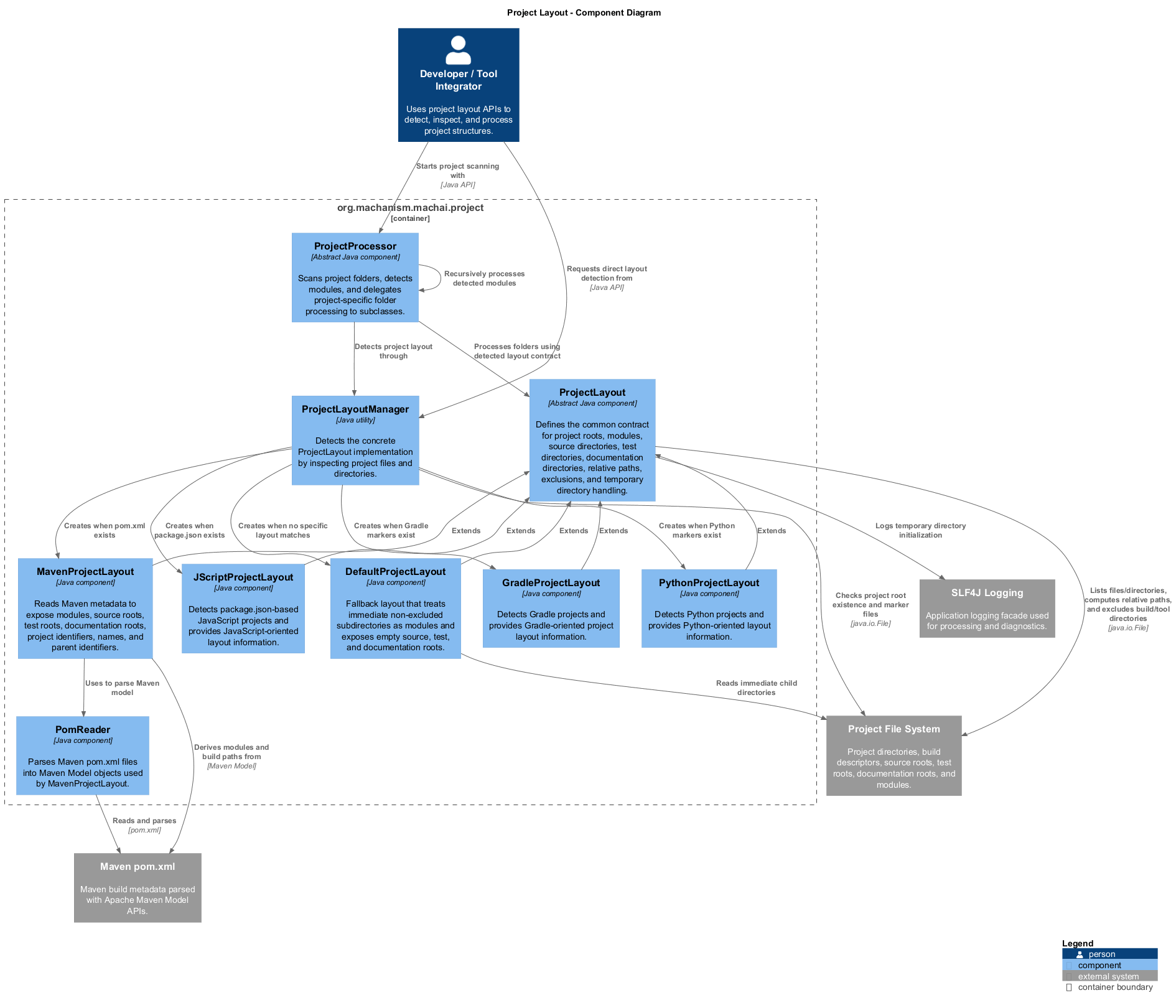

Project Layout C4 Diagram

Key Features

  • Standardized representation of conventional source, test, resource, and documentation directories
  • Built-in layout implementations for Maven, Gradle, JavaScript, Python, and default project structures
  • Project-root-relative path resolution for reliable tool integration
  • Maven metadata support through PomReader for reading pom.xml project information
  • Layout coordination through ProjectLayoutManager and project processing support through ProjectProcessor
  • Suitable for build plugins, repository scanners, code generators, documentation tooling, and validation workflows
  • Lightweight Java library designed for reusable integration in other Machai components and external tools

Getting Started

Prerequisites

  • Java 8 or later
  • Maven 3.x or later for building and consuming the library
  • Access to Maven Central or another repository containing org.machanism.machai:project-layout
  • A project directory whose structure needs to be resolved or analyzed

Basic Usage

Add Project Layout to a Maven project that needs project-structure resolution:

<dependency>
  <groupId>org.machanism.machai</groupId>
  <artifactId>project-layout</artifactId>
  <version>${project.version}</version>
</dependency>

Build or verify the library from the project root with Maven:

mvn clean verify

Typical Workflow

  1. Add project-layout as a dependency to the plugin, scanner, generator, or build tool that needs to inspect project structure.
  2. Identify the target project root directory that should be analyzed.
  3. Select the appropriate layout implementation, such as MavenProjectLayout, GradleProjectLayout, JScriptProjectLayout, PythonProjectLayout, or DefaultProjectLayout, or delegate layout coordination to ProjectLayoutManager.
  4. Resolve the relevant source, test, resource, and documentation paths through the selected layout abstraction.
  5. Use the resolved paths to drive compilation support, static analysis, code generation, documentation publishing, validation, or project indexing.
  6. Reuse the same layout model across tools to keep project-structure handling consistent and maintainable.
